Description

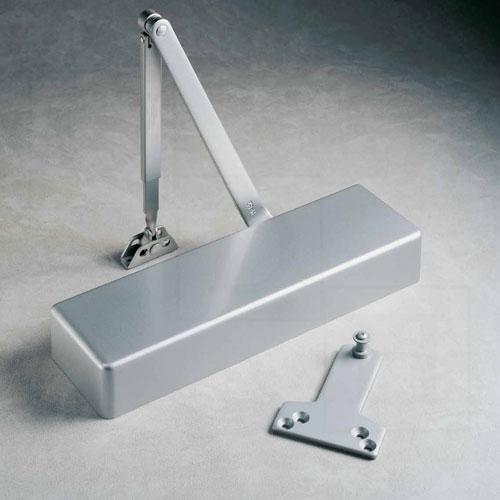

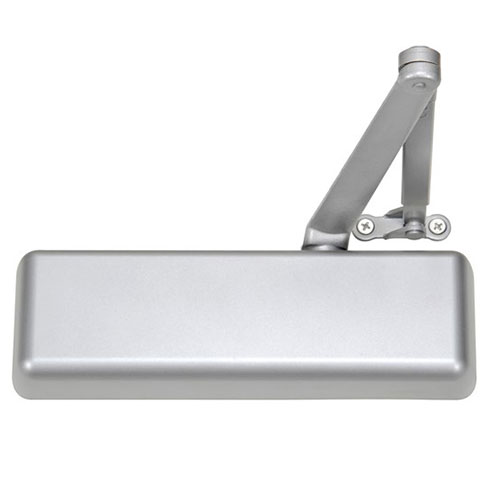

Norton 7500 Institutional Door Closer, Regular Arm, Top Jamb, and Parallel Arm – Multi-Size 1 thru 6
The Norton 7500 Door Closer is designed for institutional use and offers three arm options: Regular, Top Jamb, and Parallel. It can be used for various sizes ranging from 1 to 6.
Norton 7500 Series Closers
Institutional heavy-duty door closer.
The 7500 Series is a robust, multi-sized surface closer designed to deliver superior performance and long-term reliability. Ideal for interior or exterior doors in facilities that demand reliability, such as government, healthcare and educational institutions.
- Heavy-duty arms: Regular Rigid, Parallel Rigid, CloserPlus®, CloserPlus Spring™ and Unitrol®
- Tri-Style® packaging; tri-packed for regular, top jamb or parallel arm mounting
- Non-handed
- Rack-and-pinion design
- 2-1/8″ (54mm) projection
- 1-1/2″ (38mm) diameter piston
- 5/8″ (16mm) diameter pinion journals
- Standard, separate and independent, latch, sweep and backcheck intensity valves
- Backcheck positioning
- Staked valves
- Retrofit plates
- NorGlide® fluid
- Molded plastic cover
- Cast aluminum body
- Adjustable spring sizes 1-6
- All standard arm applications allow doors to swing 180°, conditions permitting
- Self-drilling screws
- Full-size template
- Application specific mounting: Regular (S), Top Jamb (JS) or Parallel (P) mount
- Slide Tracks: push or pull side mounting
- Exceeds 25 million cycles
Specifications
| Brand | Norton |
|---|---|
| Finishes |
689 Aluminum (Powder Coated), 690 Dark Bronze (Powder Coated) |
| Mounting Options | Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side) |
| Fire Rating | UL and cUL Listed – up to 3 Hours |
| Body Construction | Cast Aluminum Body |
| Spring Size | Adjustable Spring Size 1-6 |
| Warranty | 30 Years |
| Usage | Heavy Duty |
|---|---|
| Templating (Hole Pattern) | 2-3/8″ x 6-3/4″ |
| ANSI/BHMA Standard | ANSI/BHMA Grade 1 156.4 standards |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Cover | Full Cover |
| Handing | Non-Handed |
| Door Application | Hollow Metal or Wood |
