Description

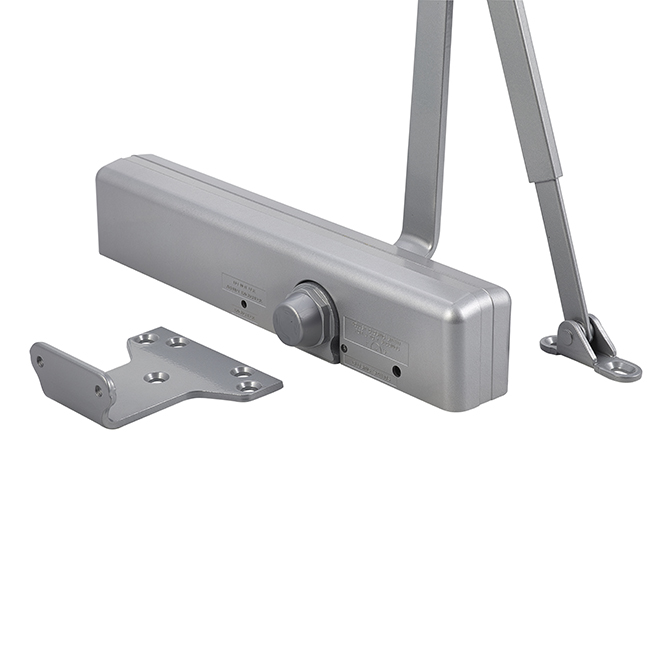

LCN 1461 RWPA Door Closer, Cast Iron Body, Regular Arm with Parallel Bracket
The 1460 Series is a universal medium-duty closer designed for maximum versatility in commercial and institutional applications, meeting ANSI/BHMA A156.4 Grade 1 and ADA reduced opening force requirements. It installs quickly, accurately and offers a variety of options. It is cUL and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty. LCN peel-n-stick templates ensure quick and accurate installation, and the patented LCN Green Dial takes the guesswork out of spring force adjustments.
Body construction
- Cast iron cylinder with full-complement bearing
- 1-1/4″ diameter piston
- Heat-treated steel pinion journal
Quality and durability
- All-weather fluid
- LCN Patented Green Dial spring force indicator
- 30-year warranty
Installation
- Universal non-handed
- Standard slimline cover, optional full cover
- Tri-packed – Regular arm with parallel arm shoe (regular, top jamb, or parallel mount)
- Peel-n-stick template and standard slim line plastic cover
- Non-sized (1-6) cylinder is adjustable for interior doors to 5’0″ and exterior doors to 4’0″
Finishes:
- AL, BHMA 689 – Aluminum
- DKBRZ, BHMA 695 – Dark Bronze
- BLK, BHMA 693 – Black
- BRASS, BHMA 696 – Brass
- LTBRZ, BHMA 691 – Light Bronze
Specifications
| Brand | LCN |
|---|---|
| Templating (Hole Pattern) | 1″ x 7-1/2″ |
| Mounting Options | Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side) |
| Spring Size | Adjustable Spring Size 1-6 |
| Handing | Non-Handed |
| Certifications | Grade 1 – ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA – Buy American Act |
| Fire Rating | UL and cUL Listed – up to 3 Hours (Non-Rated with Hold Open Arms) |
| Fasteners | Self Reaming and Tapping Screws (SRT) |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
| Finishes | 689 Aluminum (Powder Coated), 691 Light Bronze (Powder Coated), 693 Black (Powder Coated), 695 Dark Bronze (Powder Coated), 696 Brass (Powder Coated) |
|---|---|
| Usage | Medium Duty |
| Body Construction | Cast Iron Body |
| Fluid | All Weather Fluid |
| Door Application | Hollow Metal, Wood or Aluminum |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Cover | Slim Cover Standard (Full Cover Optional) |
| Warranty | 30 Years |
