NORTON 410 XTPN X 689 HEAVY DUTY DOOR CLOSER
NORTON 410 XTPN X 689 HEAVY DUTY DOOR CLOSER - Image 2

NORTON 410 XTPN X 689 HEAVY DUTY DOOR CLOSER

  • BHMA/ANSI Certified Grade-1
  • Regular, top jamb, or parallel arm mount
  • Adjustable spring size 1-6
Add to quote request
Category: Tag:

Description

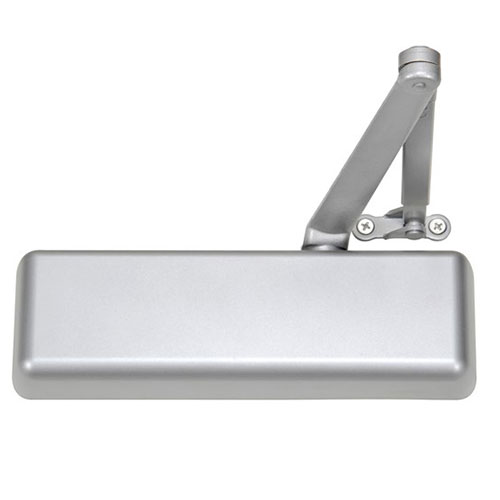

Norton 410 Cast Iron Door Closer, Tri-Packed with PA Bracket

The Norton 410 Series Cast Iron Door Closers provide an attractive retrofit solution for retail, office, government and other commercial facilities. Adjustable spring size, backcheck, closing and latch speed, provide a flexible and economical closer that you can trust. The 410 Series is certified to ANSI/BHMA Grade 1 requirements for long life and reliability, and offers a 10 year warranty.

  • Retrofit for LCN 4040/4041
  • Adjustable spring size 1-6
  • Castiron closer body
  • Adjustments for backcheck, closing, and latch speed
  • Tri-packed for regular, parallel, or top jamb installation
  • Sleeve nuts and bolts provided with each closer
  • Non-handed
  • Plastic cover

Specifications

Brand Norton
Finishes
 689 Aluminum (Powder Coated), 690 Dark Bronze (Powder Coated)
Mounting Options Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)
Fire Rating UL and cUL Listed – up to 3 Hours
Fasteners Self-drilling screws, sex nuts and bolts (SNBs)
Spring Size Adjustable Spring Size 1-6
Warranty 10 Years
Usage Heavy Duty
Templating (Hole Pattern) 2-1/4″ x 5″
ANSI/BHMA Standard ANSI/BHMA Grade 1 156.4 standards
ADA Compliance Meets ADA requirements – A117.1 Accessibility Code
Cover Full Cover
Handing Non-Handed

Installation Instructions

Specifications Sheets
