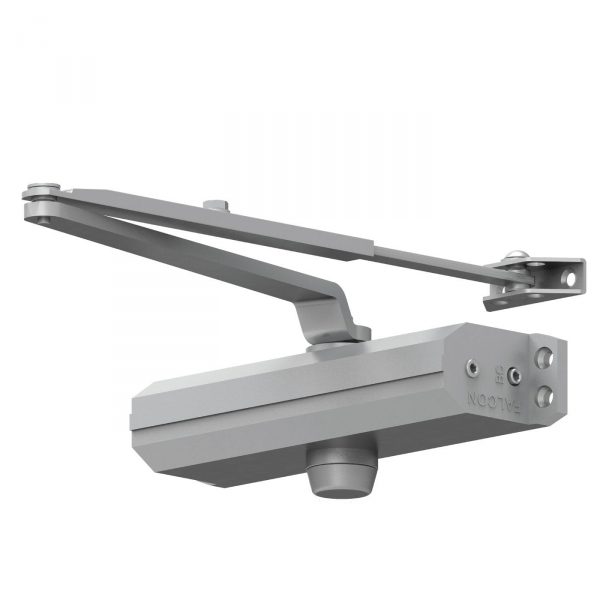

FALCON SC61 x 689 DOOR CLOSER

Falcon SC61A RWPA, SC60 Series, Regular Arm with PA Bracket, Less Cover Standard

The SC60A Series is designed for light-to medium-duty applications, like a small business or office building. It is intended for interior use with aluminum storefronts and mixed-use complexes. It mounts three ways and features the most common hole pattern in the door control industry – retrofits Norton 1600.

The SC61A features a single-piece cast aluminum body and a 1-3/8” heat-treated steel piston, a heat-treated pinion, and staked valves. The SC60A Series standard door closer is certified ANSI/BHMA A156.4 Grade 1, is UL listed, and is backed by a 10-year warranty.

Rw/PA – Regular Arm with Parallel Arm Bracket. Includes adjustable forearm assembly to accommodate a variety of door types and frame conditions. Parallel Arm (PA) bracket allows closer to be installed on the ‘push’ side of the door in a parallel arm type configuration.

• Standard Tri-Pack includes arm and bracket for Regular Pull Side, Top Jamb or Parallel Arm Mounting
• Separate adjustable general speed, latch speed and backcheck
• Universal screw pack for aluminum, hollow metal, and wood doors, includes self reaming and tapping screws

Finishes:

• AL, BHMA 689 – Silver Painted (Resembles Aluminum Finish)
• DKB, BHMA 695 – Dark Bronze Painted (Spray Duranodic)
• MTBK, BHMA 622 – Matte Black
• BR, BHMA 696 – Brass Painted
