Description

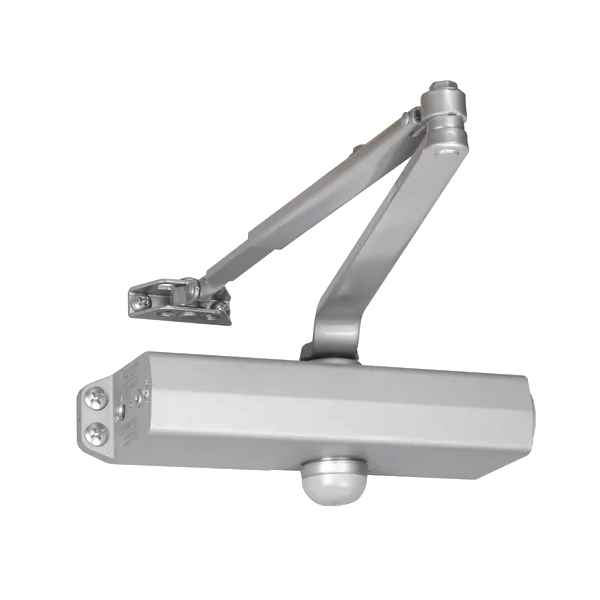

Norton 160 Series Door Closer
The 160 Series door closer, is ideal for stocking distributors serving high volume after-market and storefront segments. The 160 Series features an adjustable spring, non-hold open arms and independent and separate latch, sweep and backcheck intensity valves. With easy installation and maintenance and dependable control, the 160 Series is perfect for office doors, utility doors and strip mall applications.
Features
- 161BF: adjustable spring size 1 through 4
- 164: size 4 spring
- Non-handed
- Cast aluminum body
- Rack-and-pinion design
- Independent latch sweep and backcheck intensity valves
- Non-hold open arms: 161BF, 164
- Hold open arms: 161BF only
- Closer footprint: 3/4″ x 9-1/16″
- Closer projection: 2-5/8″
- Available in 689 (aluminum) or 690 (dark bronze) finishes
- 5-year limited warranty
Certifications:
- ANSI/BHMA A156.4, Grade 1
- UL / cUL listed for use on fire rated doors
- UL10C listed for positive pressure fire test
- Meets requirements for for Americans with Disabilities Act (ADA) and ANSI/BHMA A117.1
Caution:
- Door Closers for Low Opening Force Applications:
- Door closers installed in openings required to meet the requirements of the Americans With Disabilities Act or ANSI/BHMA Standard A117.1, when adjusted to meet those requirements, may not provide adequate closing power to dependably close and latch the door based on opening or site conditions.
Specifications
| Brand | Norton |
|---|---|
| Finishes |
Aluminum |
| Mounting Options | Push or Pull Side |
| Fire Rating | UL and cUL Listed – 3 Hours |
| Handing | Non-Handed |
| Fastener Type | Self Drilling Screws |
| Warranty | 5 Year Limited |
| Application | Office Doors; Utility Doors; Storage Doors; Retail or Outlet Malls; Convenience Stores; Warehouse Doors |
|---|---|
| ANSI/BHMA Standard | Grade 1 – ANSI/BHMA A156.4; UL/cUL Listed; UL10c; ANSI/BHMA A117.1 |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Closer Cover | Without Cover |
| Handing | Non-Handed |
| Mounting Style | Tri Mount |
