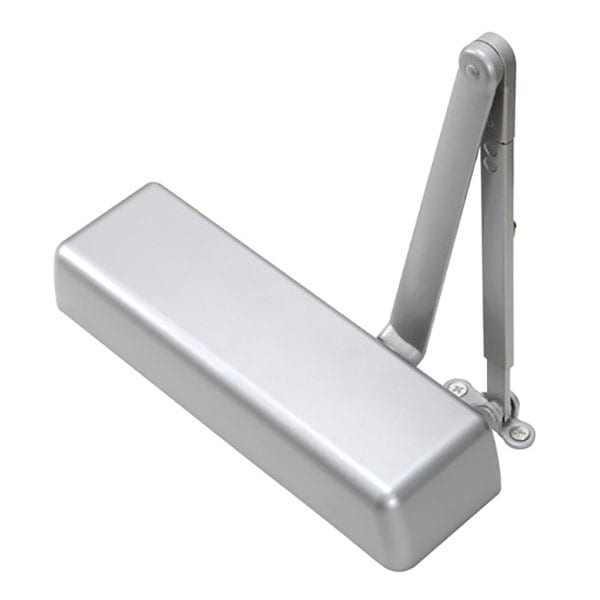

Accentra (formerly Yale) 5801 Door Closer, Size 1-6, Cast Iron Body, Regular Arm with PA Bracket, Full Cover
Accentra 5800 Series Cast Iron Door Closers are ideal for retrofit and new construction applications where strength and durability are required at an economical price. The 5800 Series features rugged construction, adjustments for backcheck, closing, and latch speed, and rack and pinion operation.
- ANSI/BHMA A156.4, Grade 1 certified
- Adjustable spring sizes 1-6
- Non-handed
- Cast iron body
- Tri-packed: regular, parallel, or top jamb mounting
- Full plastic cover
- Spring power adjustment
- Sleeve nuts included
- Retrofit for LCN 4040XP/4041
Specifications
| Brand | Accentra (Formerly Yale) |
|---|---|
| Finishes | 689 Aluminum (Powder Coated), 690 Dark Bronze (Powder Coated), BSP Black Suede Powder Coat |
| ANSI/BHMA Standard | ANSI/BHMA A156.4, Grade 1 certified |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Spring Size | Adjustable Spring Size 1-6 |
| Handing | Non-Handed |
| Door Applications | Hollow Metal, Wood or Aluminum |
| Templating (Hole Pattern) | 2-1/4″ x 5″ |
|---|---|
| Usage | Heavy Duty |
| Fire Rating | UL Listed – UL10c compliant for positive pressure |
| Body Construction | Cast Iron Body |
| Mounting Options | Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side) |
| Cover | Full Cover |
| Warranty | 10 Years |
