Description

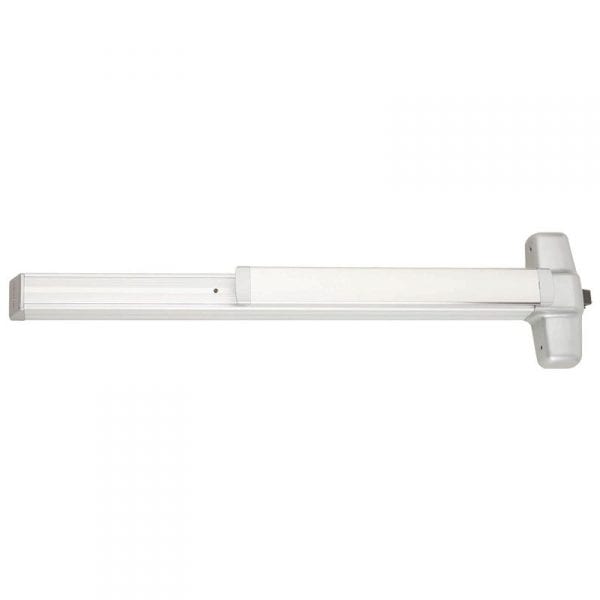

Von Duprin 99EO Grade-1 Rim Exit Device, Wide Stile Pushpad, Panic Rated, Exit Only, Hex Key Dogging
High-performance, wide stile heavy-duty rim exit device for high use and abuse applications
Often regarded as one of the world’s finest panic bar exit devices, the 99 Series has been certified to the highest industry standards and is used in schools, hospitals, government buildings, and other commercial and institutional applications.
- EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
- For use with single doors or double doors with mullions
- Deadlocking latchbolt standard
- Stock Sizes: 3′ and 4′ – can be cut to size in the field
- 299 Roller Strike Standard
- ANSI/BHMA Certified, Grade-1
- UL listed for panic exit hardware
Specifications
| Brand | Von Duprin |
|---|---|
| Usage | Heavy Duty |
| ANSI Grade | Certified ANSI A156.3-2001 Grade 1 standards |
| Fire Rating | Non-Fire-Rated |
| Latchbolt | Deadlatching, 3/4″ throw |
| Strike | 299 roller strike standard |
| Center Case | 8″ x 2-3/4″ x 2-3/8″ |
| Fasteners | Includes screws for metal and wood doors |
| Finishes | 313 Duranodic Dark Bronze, 643e Aged Bronze, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US19 (315) Flat Black, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US26D-AM (626AM) Satin Chrome Antimicrobial, US28 (628) Anodized Aluminum |
|---|---|
| Product Number | 99EO |
| Hand | Non-handed |
| Dogging Feature | Half turn hex dogging standard |
| Stile Type | Wide (Standard) |
| Projections | Pushbar Neutral – 3-13/16″ – Pushbar Depressed – 3-1/16″ |
| Door Applications | 1-3/4″ Thick Doors |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
