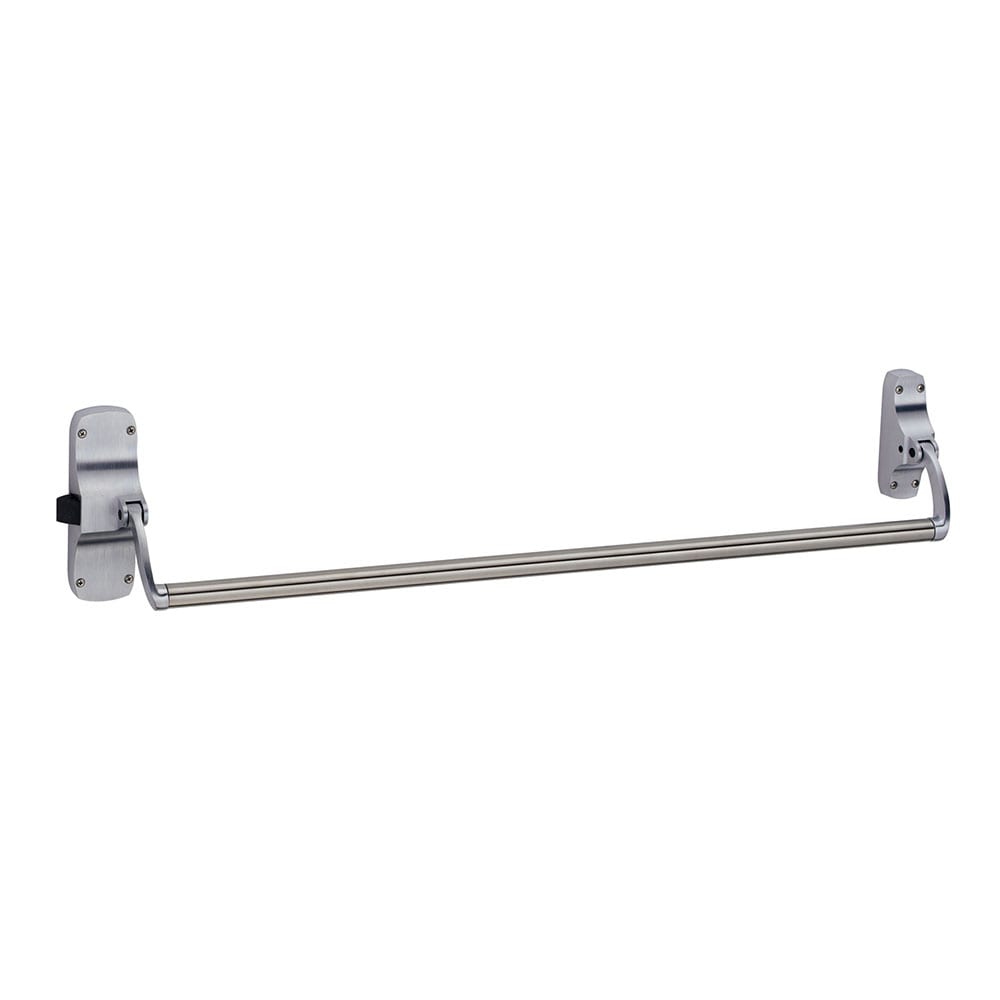

The 88 Series are exit device crossbars with a classic design. The 88 Series is a standard device for applications where a crossbar is preferred and is ANSI/BHMA A156.3, 2008 Grade 1 certified.
- US26D Satin Chrome Finish
- EO = Exit Only (Trim Sold Separately)
- Crossbar length: 42″ field sizeable
- Device centerline: 39-13/16″
- Crossbar centerline to finished floor: 36-13/16″ at center
- Lock stile case: 8-1/4″ X 2-3/4″ x 15/16″
- Hinge stile case: 6″ X 1-3/4″ x 15/16″
- Crossbar tubing: 1″ (25 mm) outside diameter
- Projection: Neutral – 4-3/4″ – Depressed – 4″
- Fasteners: All necessary mounting fasteners are included
- Cylinder Plate for NLOP Function – included with EO device
