Description

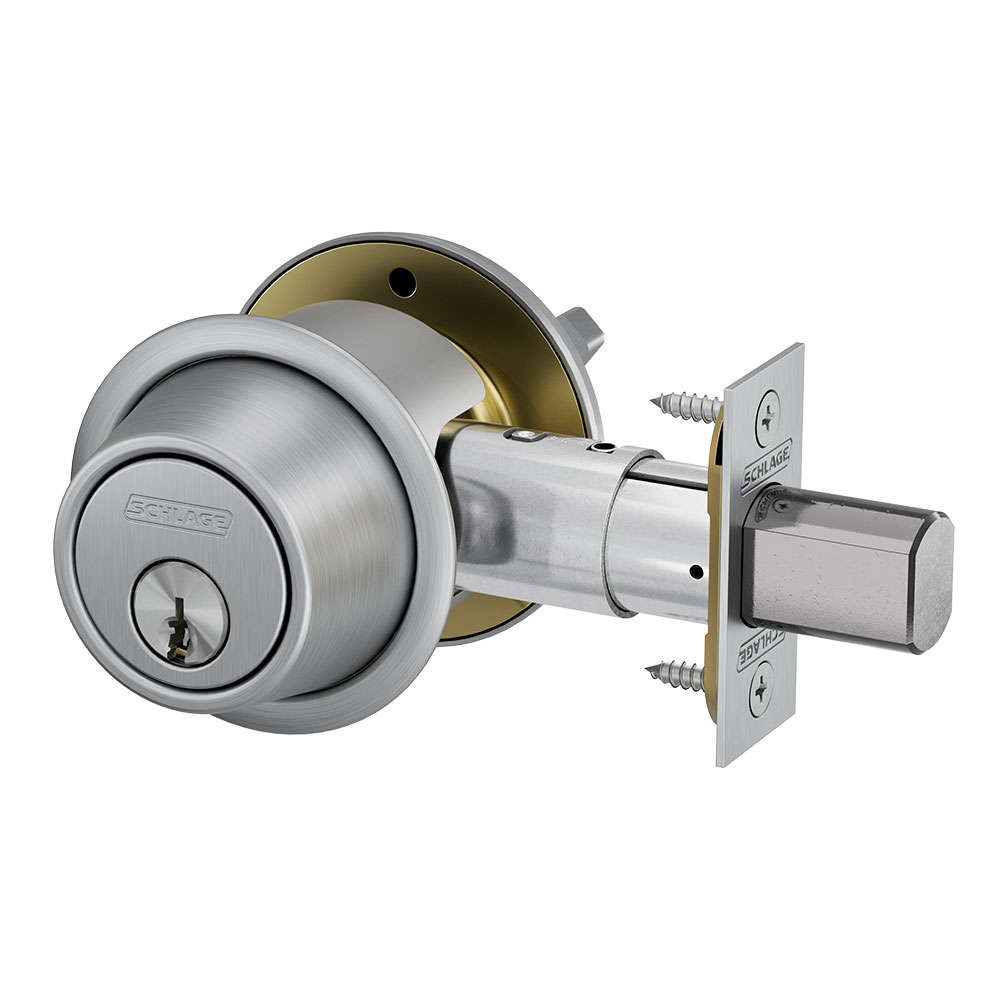

Schlage B560P Grade 2 Single Cylinder Deadbolt, Conventional Cylinder, Schlage C Keyway, Adjustable 2-3/8″ and 2-3/4″ Backset
The B560 deadbolt from Schlage is one of the toughest, most versatile deadbolts in the business. Designed by locksmiths for locksmiths, the B560 deadbolt fits virtually every door and enhances lock strength on the jamb side of the door, and will change forever the way you look at deadbolts.
ANSI Function E0151: Deadbolt thrown or retracted by key outside or thumb turn inside
- 2-3/8″ to 2-3/4″ Adjustable Backset (1-1/8″ x 2-1/4″ latch face)
- Quick, easy installation – Adjustable backset locks into place
- Anti-pry shield protects latch from attacks
- Metal dust box provides deep anchoring and added strength
- Primary or auxiliary locking for commercial buildings
- High security locking for residential buildings
- Can be suited with virtually all Schlage levers and knobs
Specifications
| Brand | Schlage |
|---|---|
| Finishes | 605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 643e Aged Bronze |
| Deadbolt Type | Single Cylinder |
| ANSI/BHMA Standard | ANSI A156.36, Grade 2 |
| Usage | Medium Duty |
| Backset | 2-3/8″ to 2-3/4″ Adjustable |
| Fire Rating | None |
| Keyway | Schlage C Keyway |
| Door Thickness | 1-3/8″ to 1-3/4″ |
|---|---|
| ANSI Function | E0151 |
| ANSI Grade | ANSI Grade 2 |
| Cylinder & Keys | 5-pin or 6-pin conventional, keyed different, with 2 keys |
| Bolt | 1″ throw bolt, 1-1/8″ x 2-1/4″ square corner face plate |
| Strike | 1-1/8” x 2-3/4“ square corner |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Warranty | 3-year limited mechanical warranty |
