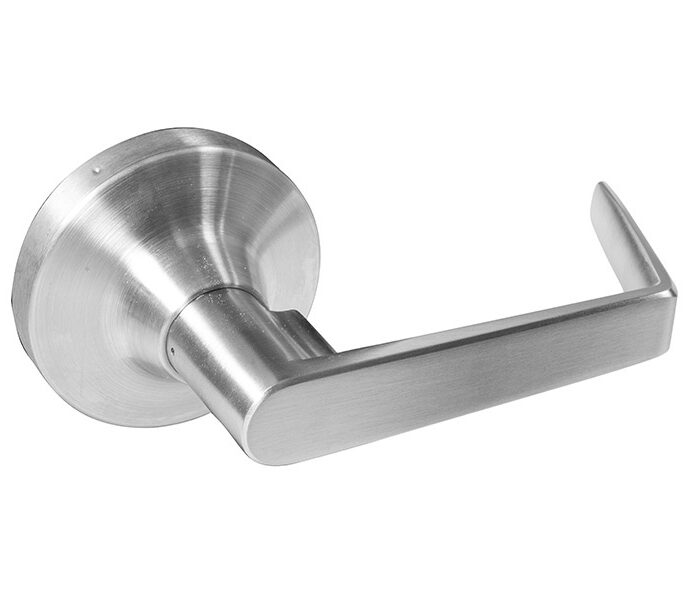

LAWRENCE 53L01B x C26D PASSAGE LEVER

Non-handed and easy to install
Lever handle allows convenient one hand operation
Available in US32D (630)
Trim has two through bolts that connect to the device chassis providing increased durability and security
Lever is freewheeling (clutch). The lever will rotate when locked to prevent excessive force being applied. This reduces the chances of the lever being damaged.
These trims have four operational options as per the table below.

Description

Brand	Lawrence
Operation Options	Lever Always Active (no Cylinder)
Function	Passage
Trim Designation	No cylinder round rose lever

Dimensions	Rose Diametre 3-1/8″ (78mm) x Lever 4-3/4″ (121mm) x Projection 3″ (76mm)
ANSI Function Number	14
Warranty	The warranty on the exit and the trim will not be honoured if an economy trim is used with a Grade 1 Exit Device.
