Description
Product Overview

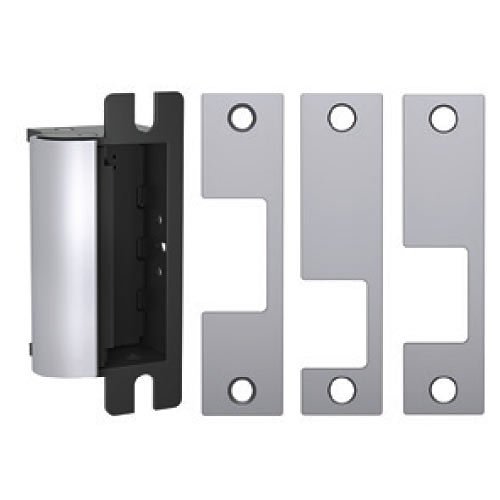

The 1006CLB is the electric strike for every latchbolt lock. It accommodates every cylindrical and mortise lockset for ANSI 4-7/8″ strike plates with up to a 3/4″ latchbolt. Included in the box is a 1006 strike body, 3 faceplates (J, KD and KM) and all the necessary mounting hardware you will need. The dual interlocking plunger design and heavy duty stainless steel construction of the 1006 series, enables it to exceed every standard developed for electric strikes. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.
Main Features
- Stainless steel construction
- Tamper resistant
- Static strength 2,500 lbs (fail secure)
- Dynamic strength 350 ft-lbs. (fail secure)
- Endurance 1,000,000 cycles
- Fail secure (standard)
- Dual voltage 12 or 24VDC continuous duty
- Non-handed
- Internally mounted solenoid
- Accommodates up to 1″ deadbolt
General Information
Name: HES 1006CLB-12/24D-630 1006 Series Complete Electric Strike, Includes Faceplates (J, K, KD, KM), Satin Stainless Steel, ASSA ABLOY, HES by ASSA ABLOY
Category: HES by ASSA ABLOY, Access Control, Locking Devices, Electric Strikes, Flash Sale
UPC Code: 740090041445
Country of Origin: United States. Country of origin is subject to change.
Specifications
| Brand | HES |
|---|---|
| ANSI Grade | ANSI/BHMA A156.31, Grade 1 |
| Fire Rating | 3 Hour UL Listed |
| Lock Type Compatibility | Rim Exit Device |
| Finishes | 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Bronze Toned, 613e Dark Oxidized Satin Bronze equivalent, 629 Bright Stainless Steel, 630 Satin Stainless Steel, BSP Black Suede Powder Coat |
|---|---|
| Usage | Heavy Duty |
| Voltage | Dual voltage 12 or 24 VDC |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
