Description
Accentra (formerly Yale) CA4608 ANSI/BHMA Grade 2 Certified Cylindrical Lock, Classroom Function, Carolina Knob, Satin Stainless Steel Finish

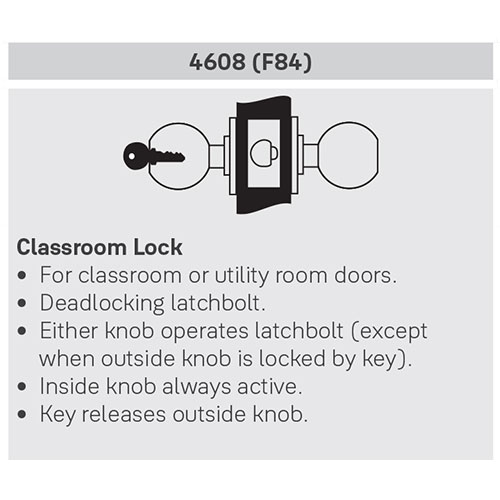

ANSI Function F84 – For classroom or utility room doors. Deadlocking latchbolt. Either knob operates latchbolt (except when outside knob is locked by key). Inside knob always active. Key releases outside knob.
Versatile: Field reversible handing and other product options offer flexibility in many commercial applications
Economical: Priced affordably to suit projects of all budgets
Secure: Quality security from a trusted brand for over 170 years
Strong & Reliable: ANSI/BHMA Grade 2 certified for long life and reliability
Specifications
| Brand | Accentra |
|---|---|
| Finishes | 630 Satin Stainless Steel |
| Cylinder & Keys | 6-pin conventional, keyed different, with 2 keys |
| Backset | 2-3/4″ |
| Handing | Non-Handed |
| Fire Rating | UL-cUL fire rated up to 3 hours |
| Latch | 1/2″ throw – 1-1/8″ x 2-1/4″ face |
| Lock Function | Classroom |
|---|---|
| ANSI/BHMA Standard | Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 |
| Keyway | Accentra/Yale E1R (Para) Keyway, Schlage C Keyway |
| Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Door Thickness | 1-3/8″ to 1-3/4″ |
| Usage | Medium Duty |
| Warranty | 3 Year |
