Description
Accentra (formerly Yale) AU4607LN ANSI/BHMA Grade 2 Certified Cylindrical Lock, Entry Function, Augusta Lever
The 4600LN Series is certified to ANSI/BHMA Grade 2 standards and is UL fire-listed for all functions, ensuring reliability and peace of mind.
ANSI Function F109 – Turn/Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned.
- Versatile: Field reversible handing and other product options offer flexibility in many commercial applications
- Economical: Priced affordably to suit projects of all budgets
- Secure: Quality security from a trusted brand for over 170 years
- Strong & Reliable: ANSI/BHMA Grade 2 certified for long life and reliability
Specifications
| Brand | Accentra |
|---|---|
| Finishes | 605 Bright Brass, 606 Satin Brass, 613e Dark Oxidized Satin Bronze equivalent, 625 Bright Chrome, 626 Satin Chrome, BSP Black Suede Powder Coat |
| Cylinder & Keys | 6-pin conventional, keyed different, with 2 keys |
| Backset | 2-3/4″ |
| Handing | Non-Handed |
| Fire Rating | UL-cUL fire rated up to 3 hours |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Latch | 1/2” throw, deadlocking – 1-1/8″ x 2-1/4″ face |
| Lock Function | Entry (Entrance) |
|---|---|
| ANSI/BHMA Standard | Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 |
| Keyway | Accentra/Yale E1R (Para) Keyway, Schlage C Keyway |
| Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Door Thickness | 1-3/8″ to 1-3/4″ |
| Usage | Medium Duty |

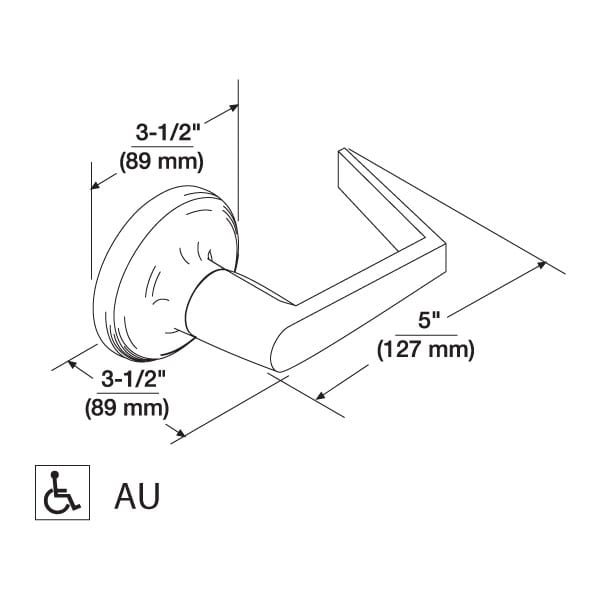

| Lever Design | AU (Augusta) |
| Warranty | 3 Year |
