Description

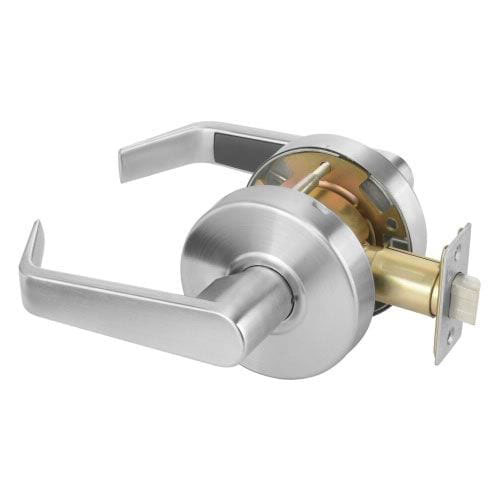

Accentra (Formerly Yale) AU4601LN 626 Grade 2 Passage/Closet Latch Cylindrical Lock, Augusta Lever, Non-Keyed, US26D/626 Satin Chrome Finish, Non-handed

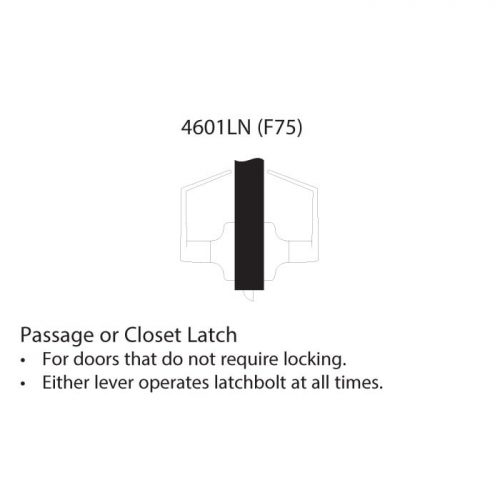

The Accentra (Formerly Yale) AU4601LN 626 is a Grade 2 Commercial Cylindrical Lockset, 2 1/8″ bore, 2 3/4″ backset. The 01 stands for the passage function latching non-keyed, 4600 is the series, AU is the Augusta Lever and the US26D/626 is a Satin Chrome Finish
Specifications
| Brand | Accentra |
|---|---|
| Finishes | 605 Bright Brass, 606 Satin Brass, 613e Dark Oxidized Satin Bronze equivalent, 625 Bright Chrome, 626 Satin Chrome, BSP Black Suede Powder Coat |
| Backset | 2-3/4″ |
| Handing | Non-Handed |
| Fire Rating | UL-cUL fire rated up to 3 hours |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Latch | 1/2″ throw – 1-1/8″ x 2-1/4″ face |
| Lock Function | Passage |
|---|---|
| ANSI/BHMA Standard | Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 |
| Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Door Thickness | 1-3/8″ to 1-3/4″ |
| Usage | Medium Duty |
| Lever Design | AU (Augusta) |
| Warranty | 3 Year |
