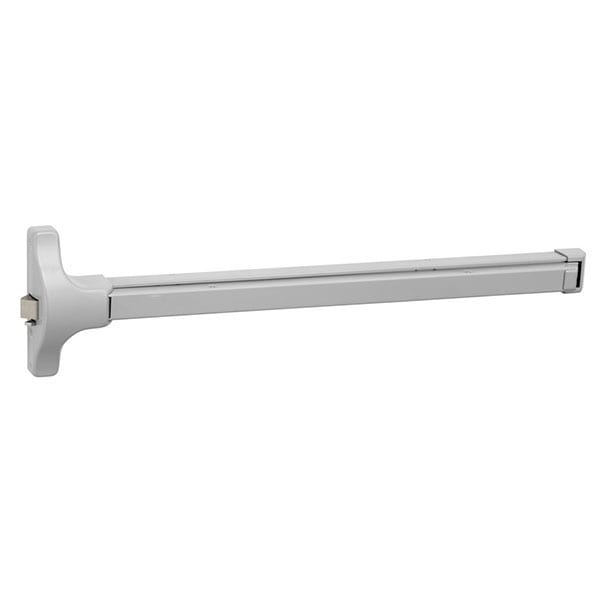

ACCENTRA 2100F-36-630 PANIC BAR

  • ANSI/BHMA Grade-1 Certified
  • ANSI Function 01, Exit Only (trim sold separately)
  • UL Listed Fire Exit Hardware, 3 Hour Rated
Category: Tags: ,

Description

Accentra (formerly Yale) 2100F Series Economy Rim Exit Device, Fire-Rated, Exit Only

Providing a higher standard of ANSI/BHMA Grade 1 performance, the 2100F Series Exit Device is the right choice for meeting the rigors of everyday use. In addition to traditional painted finishes, the 2100 Series is available in an attractive satin stainless steel finish for use where aesthetics are also important. The 2100 Series is a perfect fit for both back of house and prominent openings in office buildings, retail, and a long list of other facilities that require both performance and style.

  • Exit Only (Accentra/Yale Exit Device Trim Sold Separately)
  • Tough: Sturdy construction is ideal for meeting the rigors of demanding industry environments
  • Economical: Works for many building projects, regardless of budget
  • Strong & Durable: ANSI/BHMA Grade 1 Certification ensures long life and reliability
  • UL/cUL Listed: GXHX/GXHX7 – Fire exit hardware (F) (4′ x 8′ single, 8′ x 8′ pairs, 3 hr.)

Specifications

Brand Accentra (Formerly Yale)
Finishes 630 Satin Stainless Steel, 689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated), BSP Black Suede Powder Coat, WSP White Suede Powder Coat
Usage Medium Duty
Fire Rating UL/cUL listed up to 3 Hours
Minimum Stile Width 4-1/2″
Latchbolt 3/4″ deadlocking stainless steel pullman-type
Dogging Feature None
Door Applications 1-3/4″ Metal, wood or composite doors
Length 36″ (for 30″ to 36″ Doors), 48″ (for 42″ to 48″ Doors)
ANSI/BHMA Standard Certified ANSI/BHMA A156.3, Grade 1
Stile Type Wide (Standard)
Handling Non Handed – Completely Reversible
Projections 2-1/2″ active, 1-3/4″ dogged
Strike 757F
Fasteners Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Warranty 3 Year
