Description

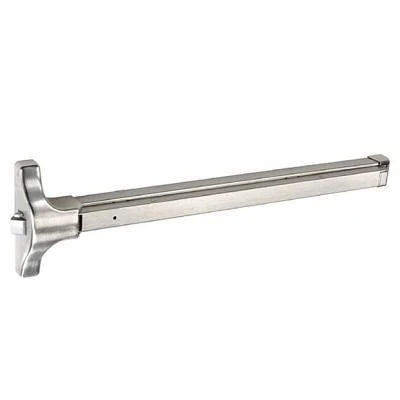

Yale 2100-36-689 is a medium duty rim exit device with a combination of sturdy construction and innovative security features, it’s easy to see why building owners and architects alike prefer the 2100 Series Exit Device for all their economy applications. It is non-handed for easy installation and it is designed for wide stile doors.
Specifications
| Brand | Accentra |
|---|---|
| Finishes | 630 Satin Stainless Steel |
| Cylinder & Keys | 6-pin conventional, keyed different, with 2 keys |
| Backset | 2-3/4″ |
| Handing | Non-Handed |
| Fire Rating | UL-cUL fire rated up to 3 hours |
| Latch | 1/2″ throw – 1-1/8″ x 2-1/4″ face |
| Lock Function | Classroom |
|---|---|
| ANSI/BHMA Standard | Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2 |
| Keyway | Accentra/Yale E1R (Para) Keyway, Schlage C Keyway |
| Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Door Thickness | 1-3/8″ to 1-3/4″ |
| Usage | Medium Duty |
| Warranty | 3 Year |
