Description

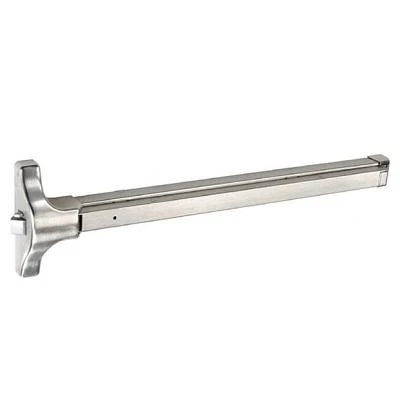

Accentra (Yale) 2100 Rim Exit Device – 36″
Features:
- Designed for wide stile doors
- Non-handed for easy installation
- Steel interlock “E” bracket maintains door-to-mullion relationship in fire-labeled devices
- Deadlocking pullman latchbolt positively engages roller strike
Applications:
- Single swing doors
- Pairs of doors (mullion required)
- Metal, wood or composite door materials
Specifications:
Door Opening Width: for 30″ – 36″ (76cm – 91cm) doors
Door Thickness: 1-3/4″ (44mm) standard.
Minimum Stile Width: 4-1/2″ (114mm)
Projection: 2-1/2″ (64mm) active, 1-3/4″ (44mm) depressed
Latchbolt: 3/4″ (19mm) deadlocking stainless steel pullman-type
Strike: 757F
Fasteners: Machine screws and wood door fasteners standard for panic hardware.
Dogging: Hex key dogging supplied standard on panic devices
Warranty: 3-year limited
Specifications
| Brand | Accentra (Formerly Yale) |
|---|---|
| Finishes | 630 Satin Stainless Steel, 689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated), BSP Black Suede Powder Coat, WSP White Suede Powder Coat |
| Usage | Medium Duty |
| Fire Rating | None |
| Minimum Stile Width | 4-1/2″ |
| Latchbolt | 3/4″ deadlocking stainless steel pullman-type |
| Dogging Feature | Half turn hex dogging standard |
| Door Applications | 1-3/4″ Metal, wood or composite doors |
| Length | 36″ (for 30″ to 36″ Doors), 48″ (for 42″ to 48″ Doors) |
|---|---|
| ANSI/BHMA Standard | Certified ANSI/BHMA A156.3, Grade 1 |
| Stile Type | Wide (Standard) |
| Handing | Non Handed – Completely Reversible |
| Projections | 2-1/2″ active, 1-3/4″ dogged |
| Strike | 757F, 793 optional (double door application, panic only) |
| Fasteners | Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware |
| Warranty | 3 Year |
